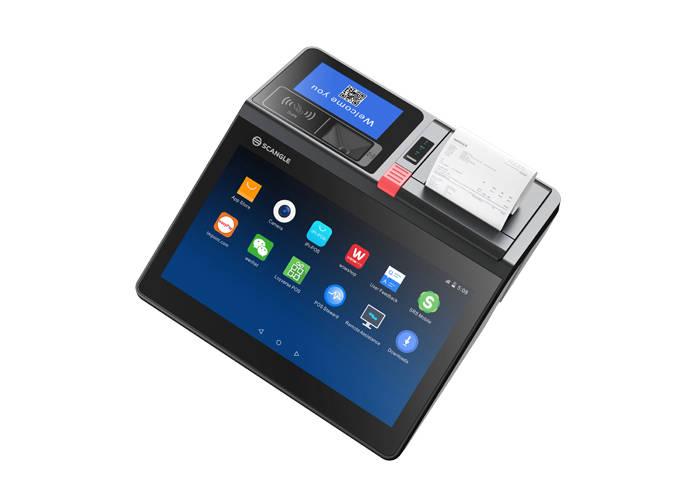

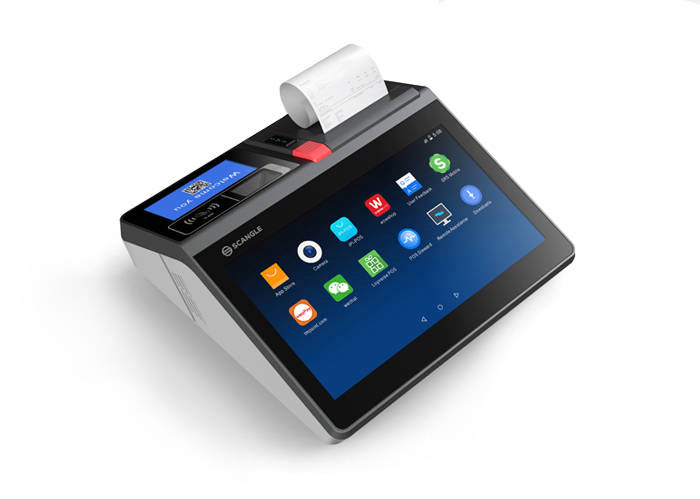

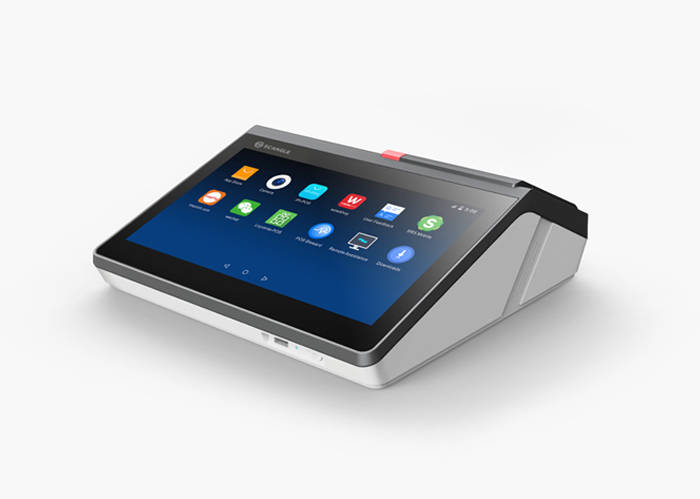

Compact POS terminal full
of practical functions
The integrated printer can print on
thermal paper and labels up to 80 mm.
There is also a practical cutting machine.
Optionally, the terminal can be equipped with a reader of
barcode and QR codes or equipped with a NFC module.
Main large 11.6" HD IPS display

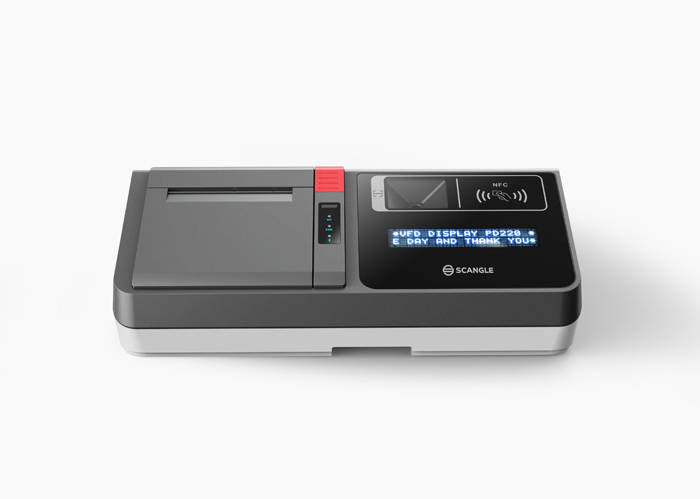

complements the handy customer display
4.3" diagonal.
The terminal is available in a version with the system
Windows 10 or Android 7.1. rich
equipment and quality design.
| Parameter | SGT-116A | SGT-116W |
|---|---|---|
| CPU | RK3288, quad-core | Intel J1900, dual-core 2.4 GHz Intel J4125, dual-core 2.0 Ghz |
| Memory | 2 GB RAM, 8 GB storage | 4 GB RAM, 64 GB storage |
| OS | Android 7.1 | Windows 10 |
| Wi-Fi | Yes | Yes |
| Display | 11,6" LED, 1 366 × 768 px, IPS | 11,6" LED, 1 366 × 768 px, IPS |
| Printer | 58/80mm thermal printer support for printing on labels paper cutter | 58/80mm thermal printer
support for printing on labels paper cutter |
| Power supply | 12VDC, 5A | 12VDC, 5A |
| Weight | 3,2 kg | 3,2 kg |
| Dimensions | 288 × 295 × 100 mm | 288 × 295 × 100 mm |
| Ports | 1× VGA 2× USB 2.0 2× USB 3.0 1× RS232 1× RJ45 1× RJ11 1× Audio 1× Mic 1× 12V DC In | 1× VGA
2× USB 2.0 2× USB 3.0 1× RS232 1× RJ45 1× RJ11 1× Audio 1× Mic 1× 12V DC In |
| Color | Black + grey | Black + grey |
| Optional | 4.3" customer display
Wi-Fi 2D scanner NFC 6000 mAh battery | 4.3" customer display (Intel J1900)
Two-line customer display (Intel J4125) Wi-Fi 2D scanner NFC 6000 mAh battery |
